Plop HumanPad


It is July 2017. After 9 years, I am building a new HumanPad. Using two Teensy 3.6.

The new HumanPad can act as USB host to attach a secondary gamepad/controller. This can be used for example to support a player. But much more is possible.

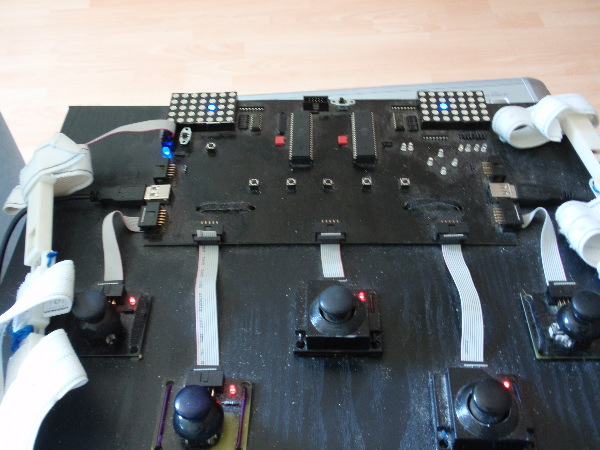

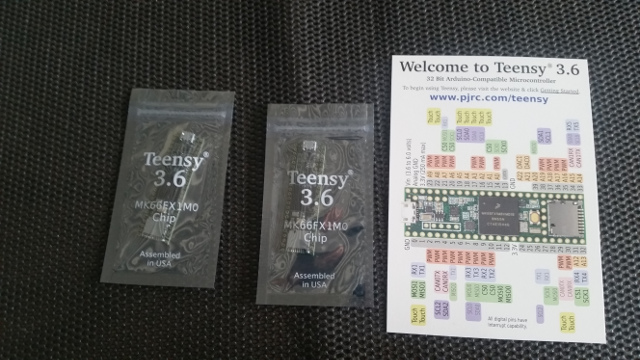

Everything worked well. My programs and the circuit worked well. The result of the 3D print is what I designed. But unfortunately, I destroyed the new HumanPad by carelessness with a software mistake. After being angry about myself it's time build a new one. I have a second circuit board, so I can start again with soldering. New Teensys are ordered. I think, the old ones are dead :(

Update: The Teensys are still alive. The short circuit did not destroy them. Excelent hardware. The Humanpad works again.

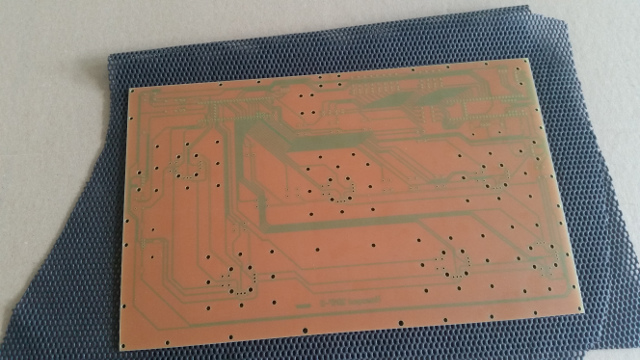

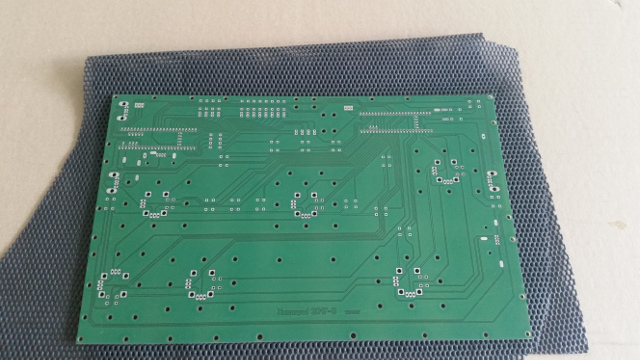

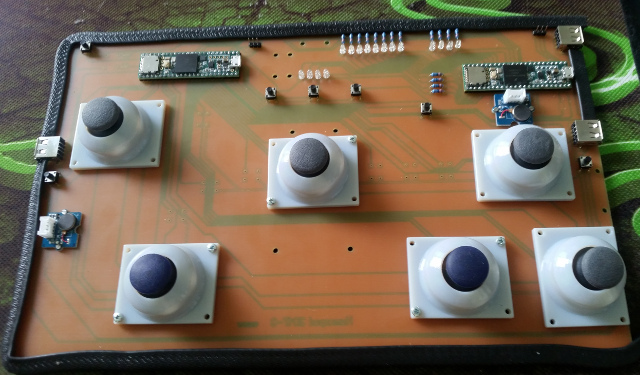

The board

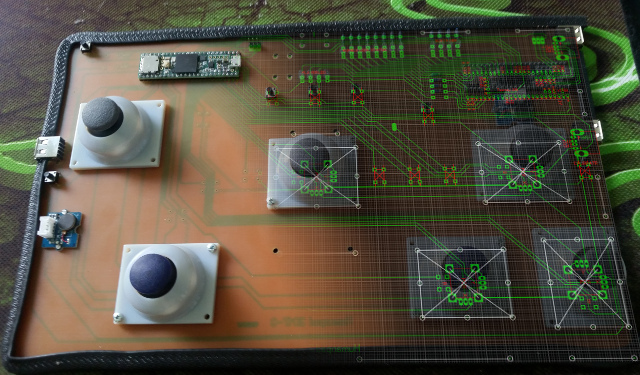

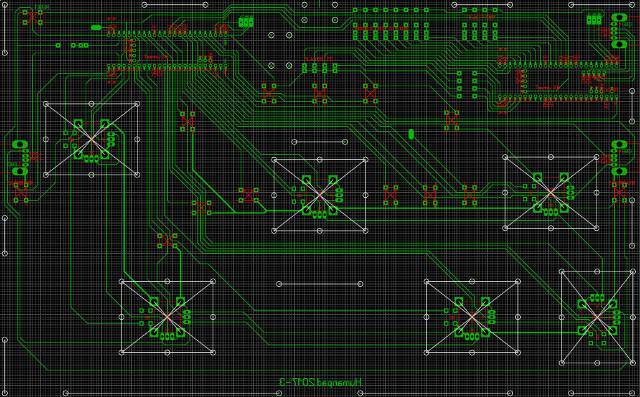

Circuit (Sprint-Layout)

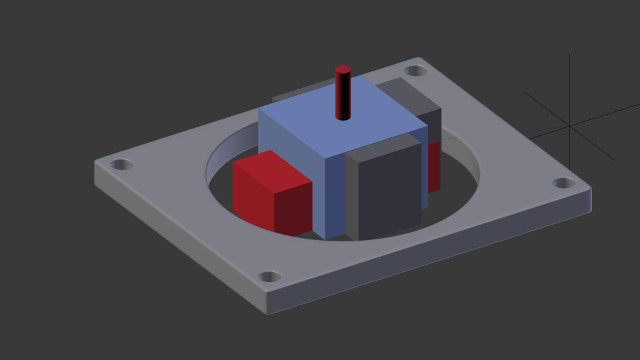

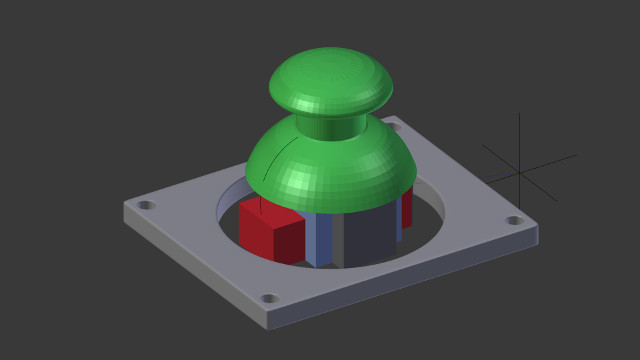

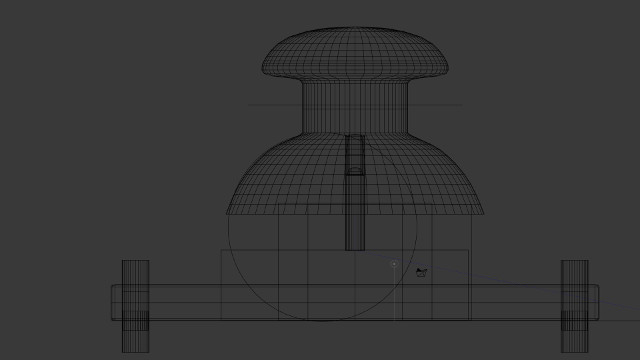

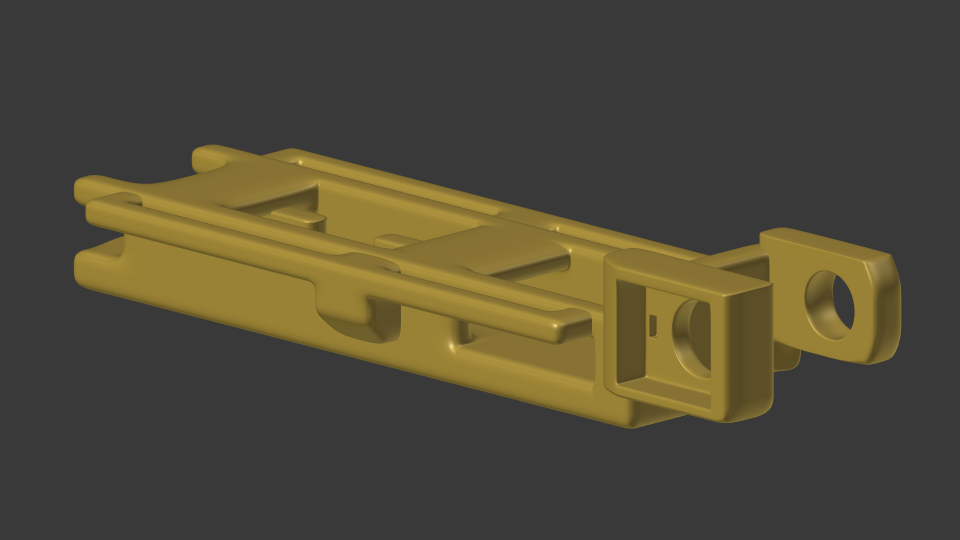

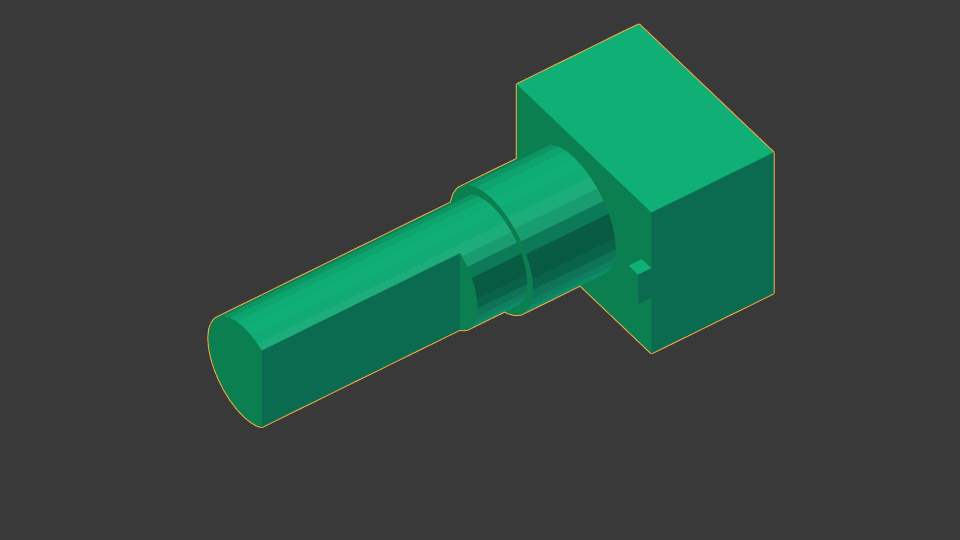

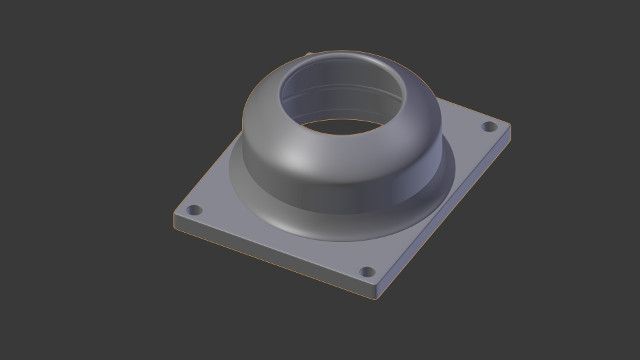

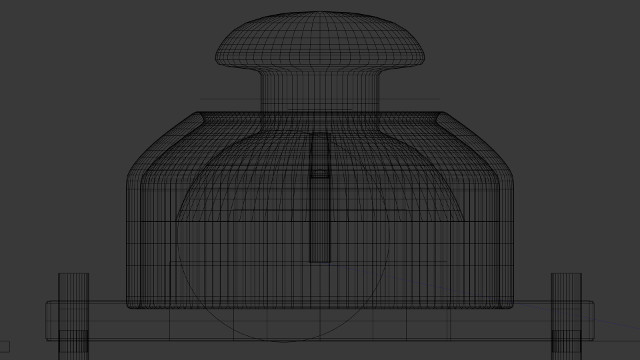

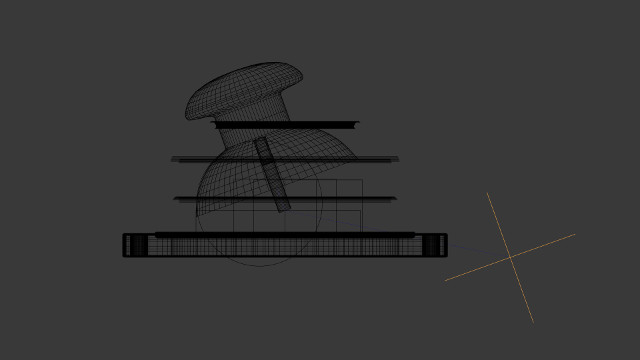

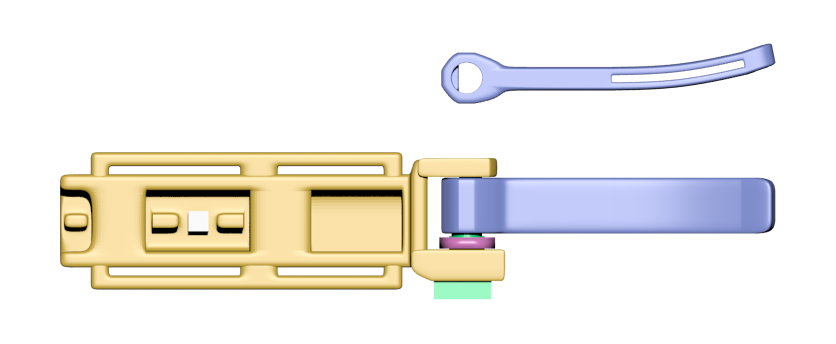

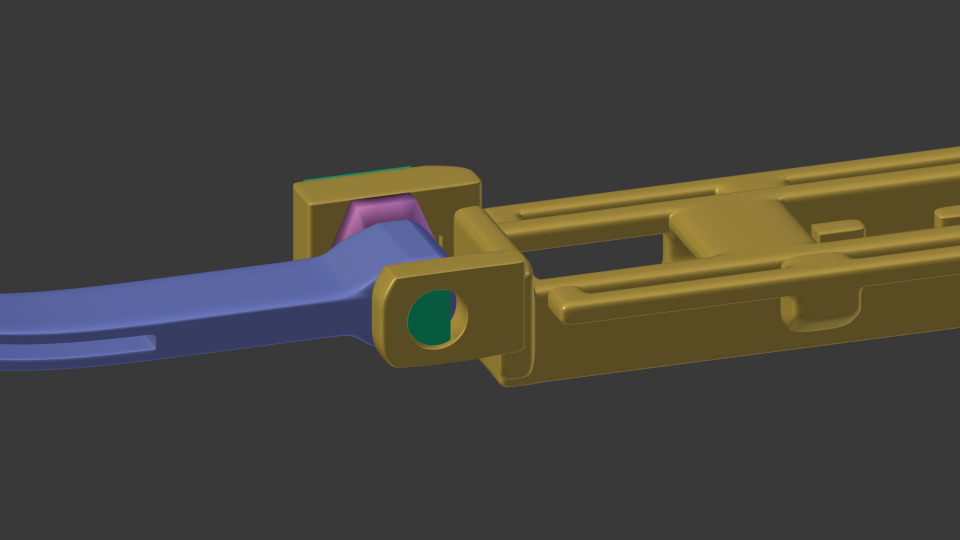

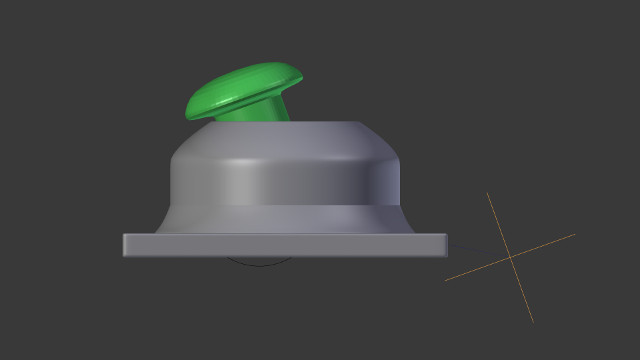

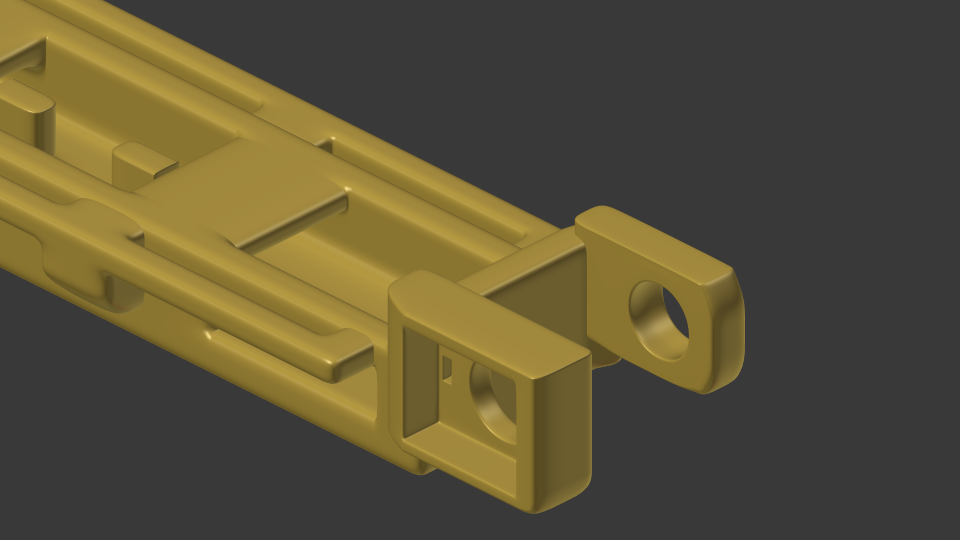

Stick shell - 3D print design (Blender)

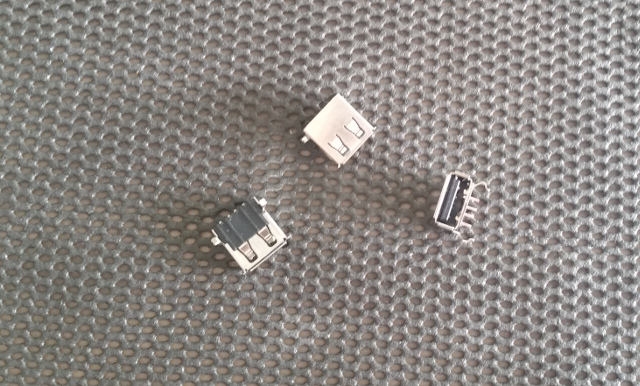

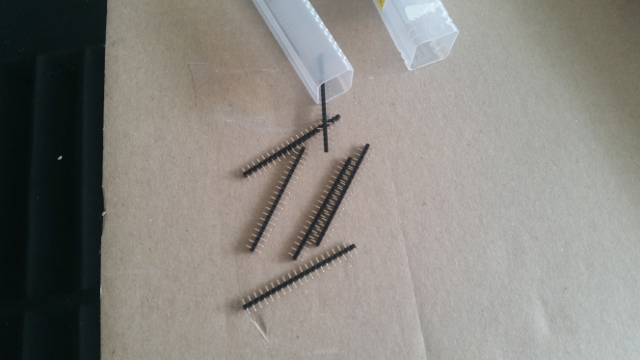

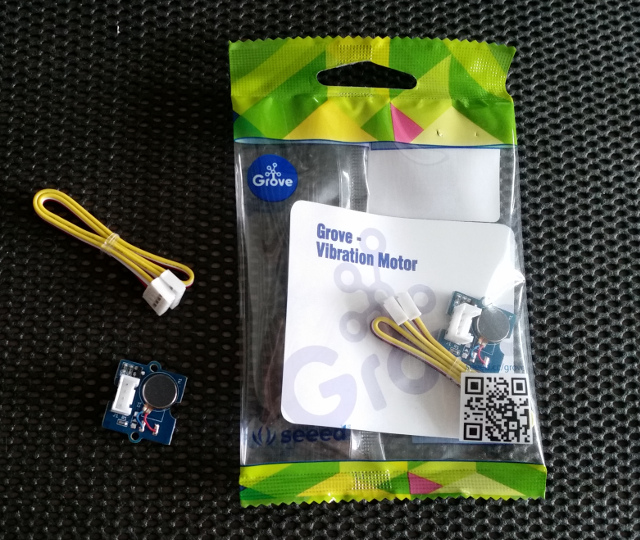

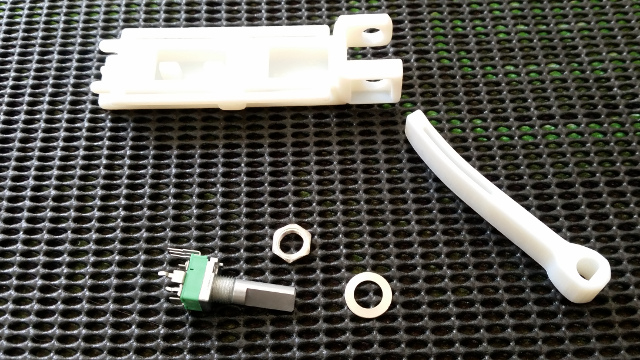

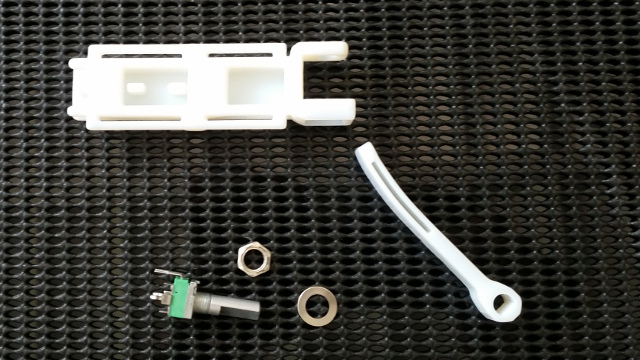

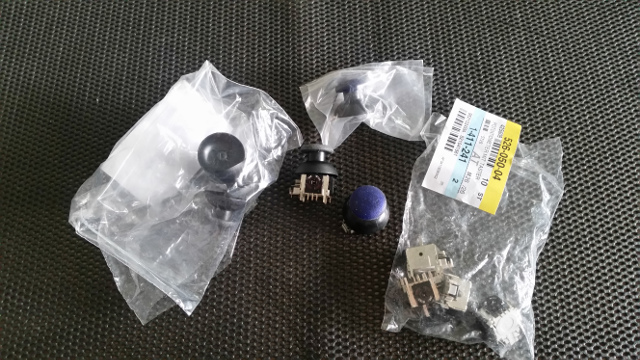

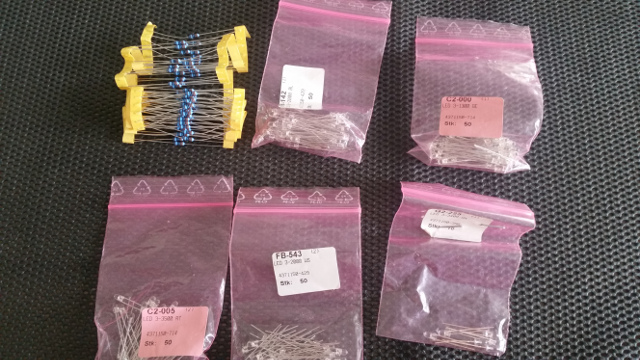

Parts


Old informations (2008)


The HumanPad is a gamepad, developed by Elmar Hanlhofer. The special design makes it easier for pysically challenged people (without "finger function" ex. tetra plegic) to play with a gamepad/controller/joystick. The main problem with common gamepads is to use the analog triggers (with the forefingers) and the buttons or sticks (with the thumb) at the same time. The solution is to use the triggers with the wrist. It should be easy to modify the HumanPad to help people with other handicaps too.


Videos

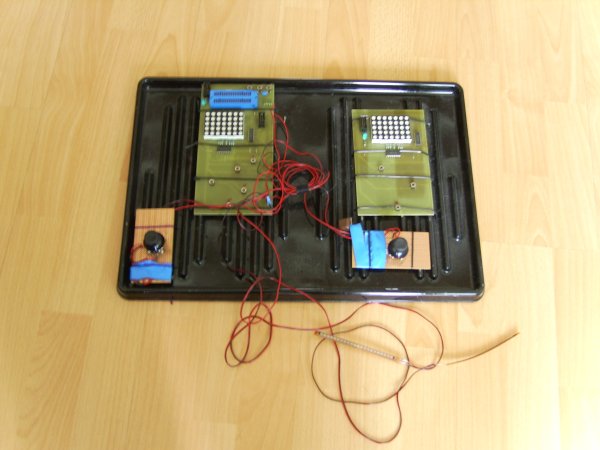

HumanPad v0.2 in action (2005)


Pictures

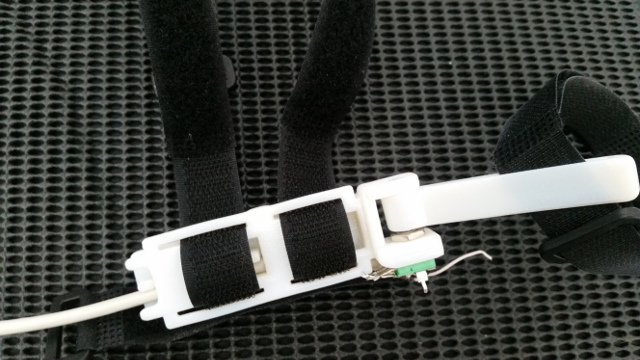

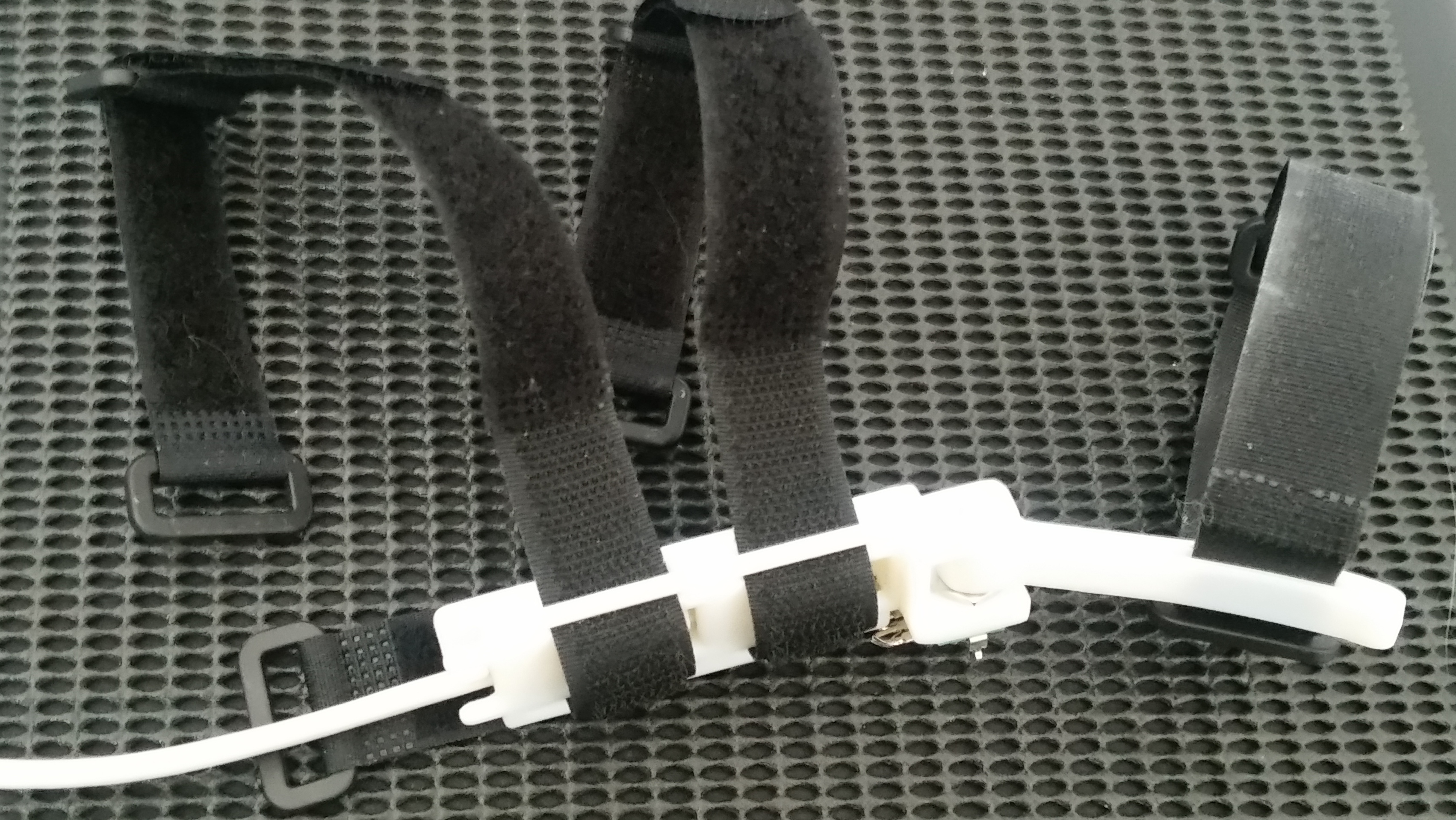

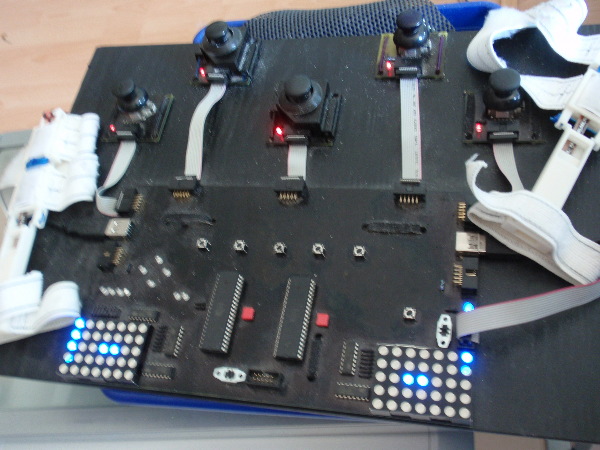

Plop HumanPad v0.6 - with parts from a 3D printer

zoom

zoom

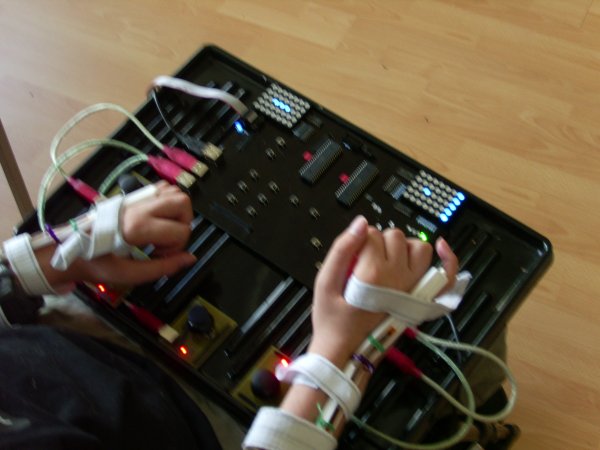

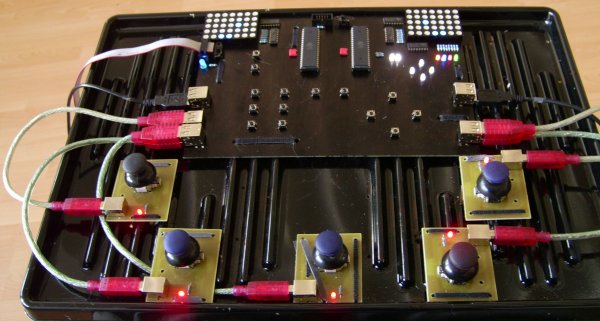

Plop HumanPad v0.5

zoom

zoom

zoom

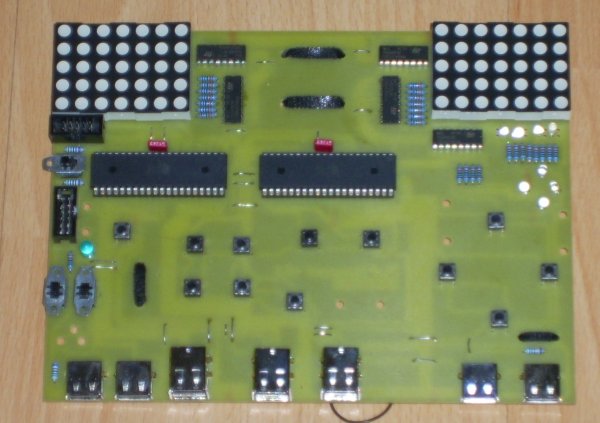

Plop HumanPad v0.4

zoom

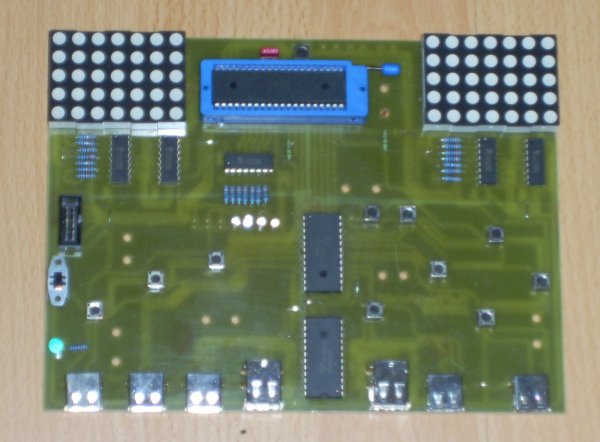

Plop HumanPad v0.3
